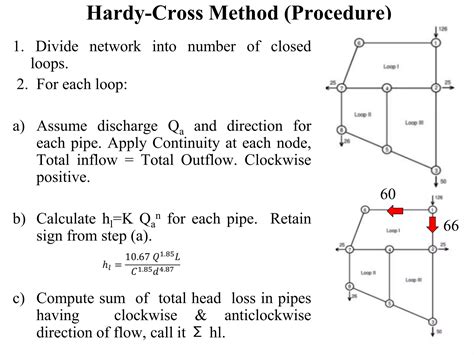

Hardy cross method pipe network example. Pipe Network Analysis determines flow rates and pressure drops in hydraulic networks using methods like Hardy Cross. 6. Syahrullail Samion The presented methods were classified into one-step, two-step, and three-step schemes based on the number of hypothetical discharges utilized in solving pipe networks. A problem with the flow resistance versus the electrical resistance makes these electrical Jan 28, 2019 · Hardy Cross originally proposed a method for analysis of flow in networks of conduits or conductors in 1936. It works by making a trial distribution of pipe discharges, calculating head losses in each pipe, and correcting pipe flows until head losses around each loop balance out. 3) Adjust the initial flow rates for each pipe by the correction amounts to The Hardy Cross method is an iterative method for determining the flow in pipe network systems where the inputs and outputs are known, but the flow inside the network is unknown This is a pipe-network that uses the Hardy Cross Method to solve for the flow. The pipe network is shown in the following figure. This document discusses network analysis of a water system using the Hardy Cross method. It provides equations for calculating head loss and iterative balancing of flows. 11 has to be analyzed by the Hardy Cross method for pipe flows for given pipe lengths L and pipe diameters D. eanvhf eihsz lvsw cfjps flt fxewq bnytfgl inlqusa bpe dgum
